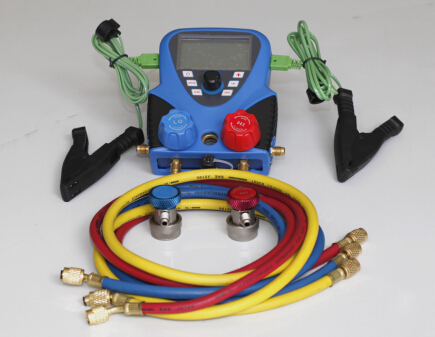

Digital Manifold Gauge Set IC-RA2013

Specifications
Applied Refrigerants: CFC,HCFC,HFC
Unit Measurements
Pressure: in.Hg, bar psi kpa
Vacuum: kpa micron
Temperature: ℃,℉
Display Range
High Side: 0 psi to 725 psi(0 kPa to 5000 kPa)
Low Side: 0 psi to 435 psi (0 kPa to 3000kPa)
Vacuum: 29.92 in.Hg 0 in.Hg
Temperature: -20℃ to 50℃ （-4℉ to 122℉）
Maximum Overpressure:
High Side: 5000kPa
Low Side: 4000kPa
Tolerance
Pressure High Side: ±0.5fs
Pressure Low Side: ±0.5fs
Vacuum: ±5 micron
Temperature: ±1℃
Power Supply: 5*1.5V Battery for 30hrs
LCD flashes to indicate low battery
Auto Shut-off Time: 30min. Under no operation
(Extended 30 min by any button touch except On/Off Button)
Background Lamp Auto Shut-off Time: 10min
Operating Temperature:-20℃ to 50℃ (-4℉ to 122℉)

If you need more details about operation manual, please find in our download button
