Description:

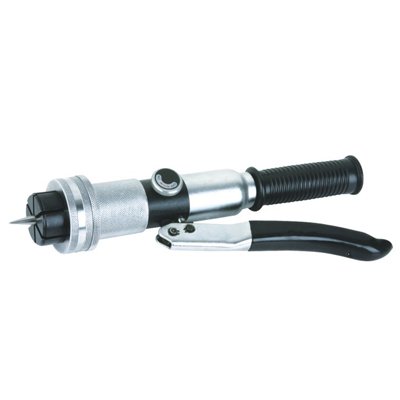

Hydraulic Tube Expander CT-300
- Manual hydraulic mechanism designed can expand from 10mm to 42mm O.D.
- Tubing easily with less effort.
- Used for soft copper tube, aluminum tube, titanium tube, soft steel and other soft tube.
- Expander segments are made of high-quality hardened steel.

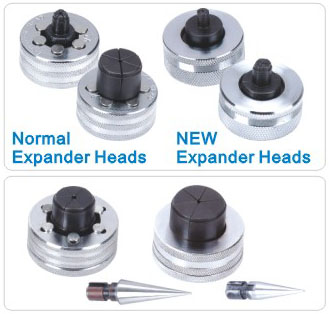

SPARE EXPANDER HEADS
- Deburr inside of tube.
- Anneal the tube if necessary (for hard or thickwall tube).
- Screw the expander head on expander.
- Put the end of tube on expander head.
- Tighten the relief valve knob to 'ON'position then pump handle until tube is expanded to the end.
- Turn the relief valve knob to 'OFF' position to loosen expander head. Remove expanded tube.
Sapre Expander Heads
|
Item No. |
Inch |
Item No. |
Metric |
|
100A-01 |
3/8″ |
100M-01 |
10mm |
|
100A-02 |
1/2″ |
100M-02 |
12mm |
|
100A-03 |
5/8″ |
100M-03 |
16mm |
|
100A-04 |
3/4″ |
100M-04 |
19mm |
|
100A-05 |
7/8″ |
100M-05 |
22mm |
|
100A-06 |
1″ |
100M-06 |
25mm |
|
100A-07 |
1-1/8″ |
100M-07 |
28mm |
|
100A-08 |
1-1/4″ |
100M-08 |
32mm |
|
100A-09 |
1-3/8″ |
100M-09 |
35mm |
|
100A-10 |
1-1/2″ |
100M-10 |
38mm |
|
100A-11 |
1-5/8″ |
100M-11 |
42mm |
CT-300AL
|
CT-300AL |
CT-300A+CT-312+CT-209+CT-207 |
|
For Inch |
3/8", 1/2", 5/8", 3/4", 7/8", 1", 1-1/8" O.D.Tubing. |
|
Expander Heads |
1-1/4", 1-3/8", 1-1/2",1-5/8"O.D.Tubing. |
CT-300ML
|
CT-300ML |
CT-300M+CT-312+CT-209+CT-207 |
|
For Metric |
10,12,16,19,22,25,28mm O.D. Tubing. |
|
Expander Heads |
32,35,38,42mm O.D. Tubing. |
CT-300A
|
CT-300A |
CT-300A+CT-312+CT-208 |
|
For Inch |
3/8", 1/2", 5/8", 3/4", 7/8", 1", 1-1/8" O.D.Tubing. |
CT-300M
|
CT-300M |
CT-300M+CT-312+CT-208 |
|
For Metric |
10,12,16,19,22,25,28mm O.D. Tubing. | |
